I write this tutorial because user Scrabbulor requested it.



Ok, first of all you need some software, i will use 3ds max in this tutorial. You can download 30 day trial for free from Autodesk site. Next, you need NIF plugins, download version 3.7.2.1 or 3.7.2

On 3.7.1. meshes won't export well, and on 3.7.2 animations won't export well, but in this tutorial we will change mesh, so just grab 3.7.2 this time.

You need also tool named nifskope.

And BSA Browser or FoMM to extract game content, like dragon meshes/textures/sounds and other stuff.



If you have all those things, let's get started

Run BSA Browser, and open "Skyrim - Meshes.bsa" file located for example in "X:\Steam\steamapps\common\skyrim\Data\". It will take a minute to load this file, it contains meshes from game. Select "skeleton.nif"(from "meshes\actors\dragon\character assets", thats important, if you select skeleton.nif from other path, mesh won't import to 3ds max) and "alduin.nif" for example. Then click Action->Extract





http://i1104.photobucket.com/albums/h333/izomuli/1-9.png





Now it's time to run 3ds max. Click on File->Import...->skyrim\Data\meshes\actors\dragon\character assets\alduin.nif->Open, use default import settings, like this:





http://i1104.photobucket.com/albums/h333/izomuli/2-8.png





Set path to "skeleton.nif" file, for example "X:\skyrim\Data\meshes\actors\dragon\character assets\skeleton.nif" then click Import button. Now you can edit mesh. After you finish with this, you must add "Skin" modifier





http://i1104.photobucket.com/albums/h333/izomuli/3-6.png





1-add modifier

2-click on "Add" button

3-Click on "All" button, then hold ctrl and unselect some bones, in this case unselect those:



AlduinAnim:1

Capsule01

Capsule09

MagicEffectsNode

NPC

NPC COM

NPC Head MagicNode [Hmag]

NPC Hub01

NPC LFootBall

NPC Footstep

NPC LHeel

NPC NeckHub

NPC RFootBall

NPC RFootstep

NPC RHeel

NPC Root [Root]

NPC TailHub



4-click "Select" button



Now i guess you should do some rigging, but it's not necessary.

Add "BSDismemberSkin" modifier, and mesh is ready for export now. Click File->Export...->blabla.nif[select "Save as type:" Netimmerse/Gamebryo (*.KF, *.NIF)] i guess you should use those settings to export:





http://i1104.photobucket.com/albums/h333/izomuli/4-5.png





Then, you know, click on "Export" button. Now it's time to work in NifSkope, so run this tool. File->Load... choose your exported file and click Open. First, delete NiAlphaProperty block from NiTriShape tree:





http://i1104.photobucket.com/albums/h333/izomuli/5-4.png





Last, click on "BSDismemberSkinInstance" block and in "Partitions" change Body Part "BP_TORSO" to "30"





http://i1104.photobucket.com/albums/h333/izomuli/6-3.png

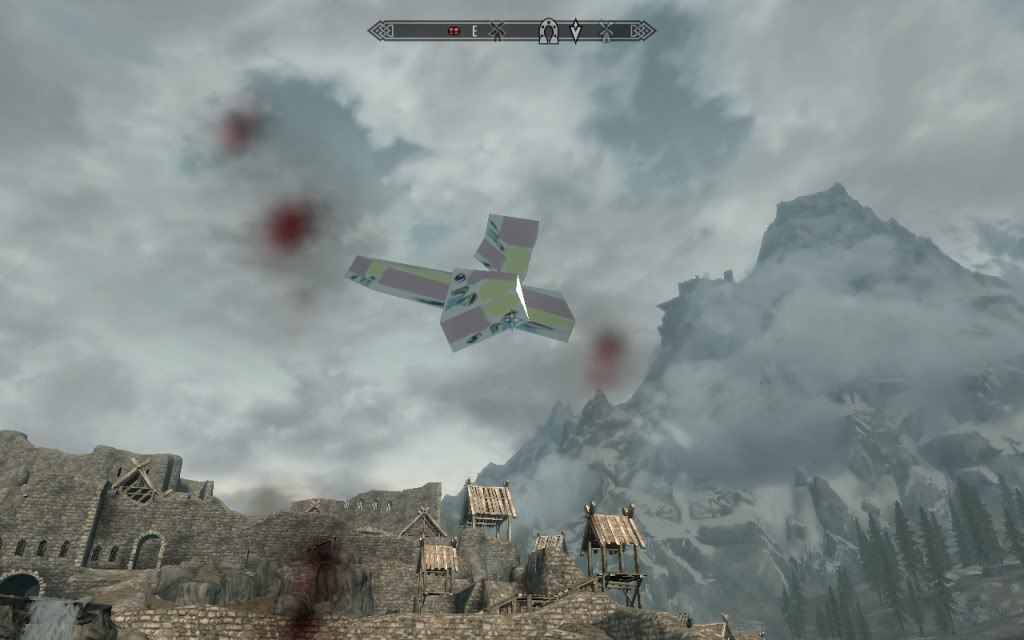

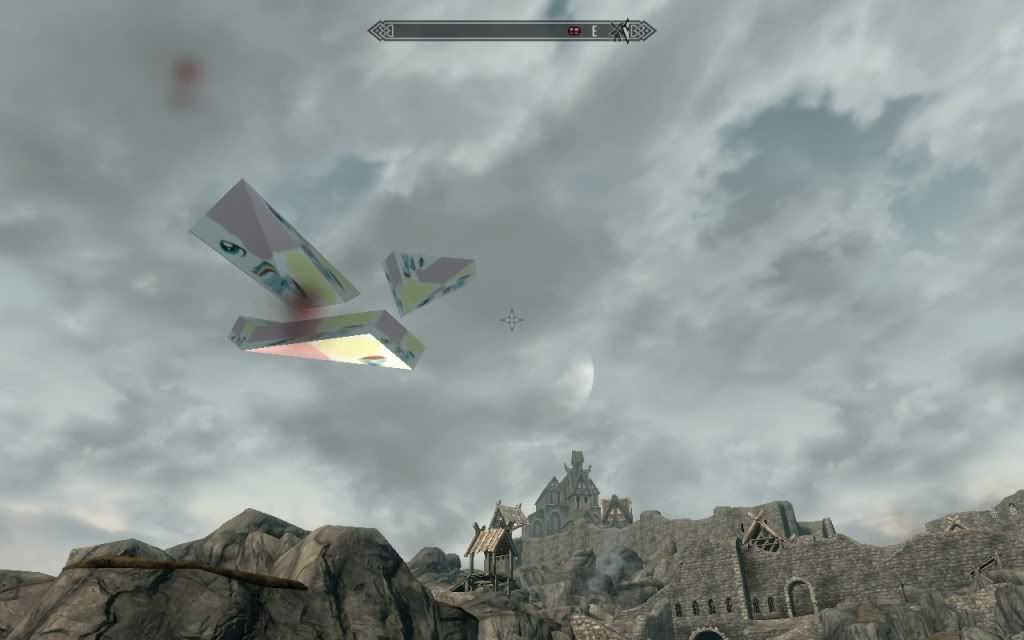

Now click File->Save As...->alduin.nif, put alduin.nif file to "skyrim\Data\meshes\actors\dragon\character assets\" and you've done. It's not as hard as it seems, is'nt it?





http://i1104.photobucket.com/albums/h333/izomuli/th_2-9.jpg





http://i1104.photobucket.com/albums/h333/izomuli/th_1-10.jpg





If you have any questions, post them here or on PW. Also, i like cupcakes
